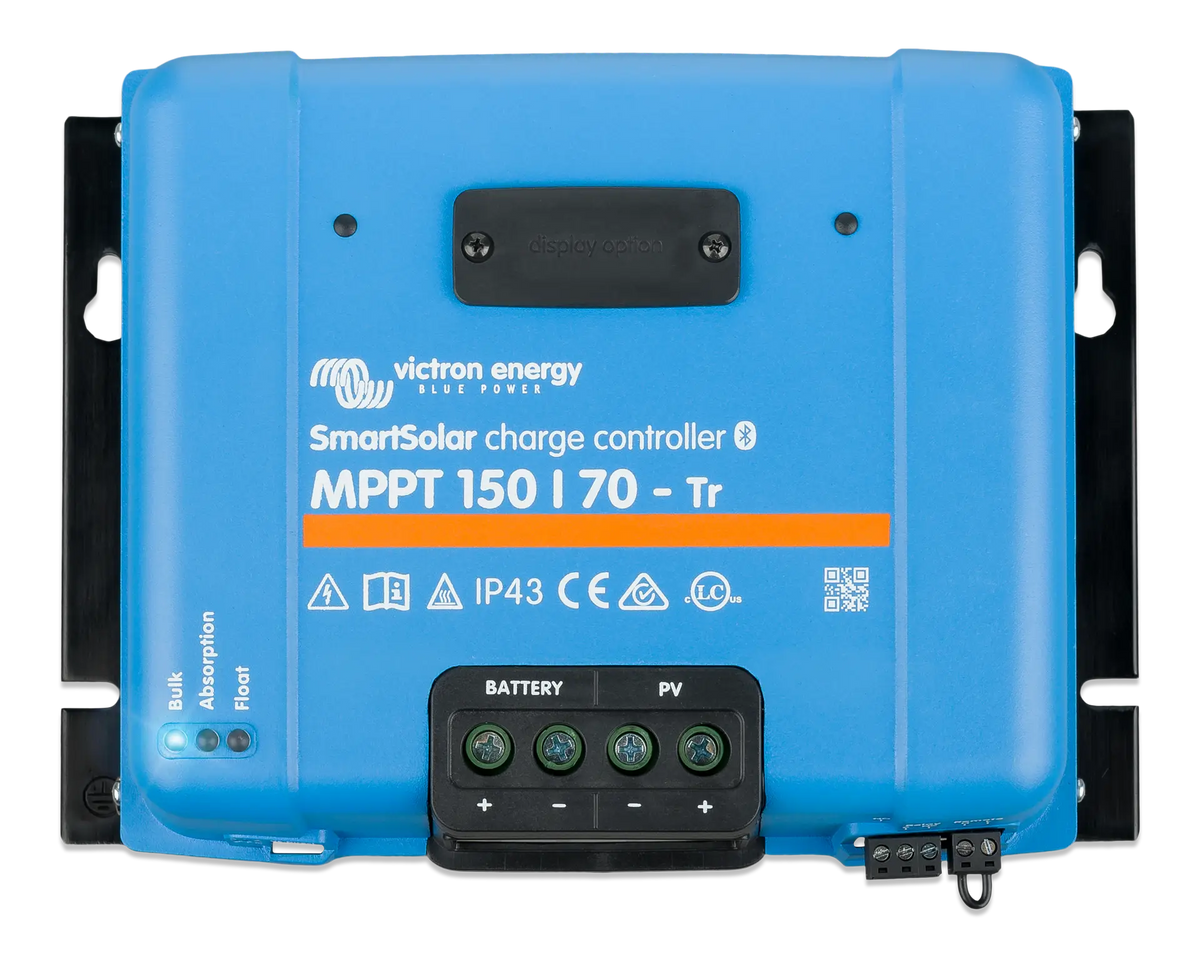

Victron SmartSolar MPPT 150/70-Tr

- Battery voltage - 12 / 24 / 48 V Auto Select
- Rated charge current - 70A
- Nominal PV power(See note 1a, b) -12 V: 1000 W / 24 V: 2000 W / 36 V: 3000 W / 48 V: 4000 W
- Max. PV short circuit current (See note 2) - 50 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage -150 V absolute maximum coldest conditions /145 V start-up and operating maximum
- Maximum efficiency - 98 %
- Self-consumption - Less than 35mA @ 12 V / 20mA @ 48 V
- Charge voltage 'absorption' -Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)
- Charge voltage 'float' - Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable)
- Charge algorithm - multi-stage adaptive (eight pre-programmed algorithms)
- Temperature compensation -16 mV / -32 mV / -64 mV / °C
- Protection - PV reverse polarity / output short circuit / over-temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Data communication port - VE.Direct or Bluetooth
- Data stored -Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
- Number of days trends data is stored - 46
- PV terminals (See Note 3) - 35 mm² / AWG2 (Tr models)
- Two pairs of MC4 connectors (MC4 models)
- Battery terminals- 35 mm² / AWG2

Notes:

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels
Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
