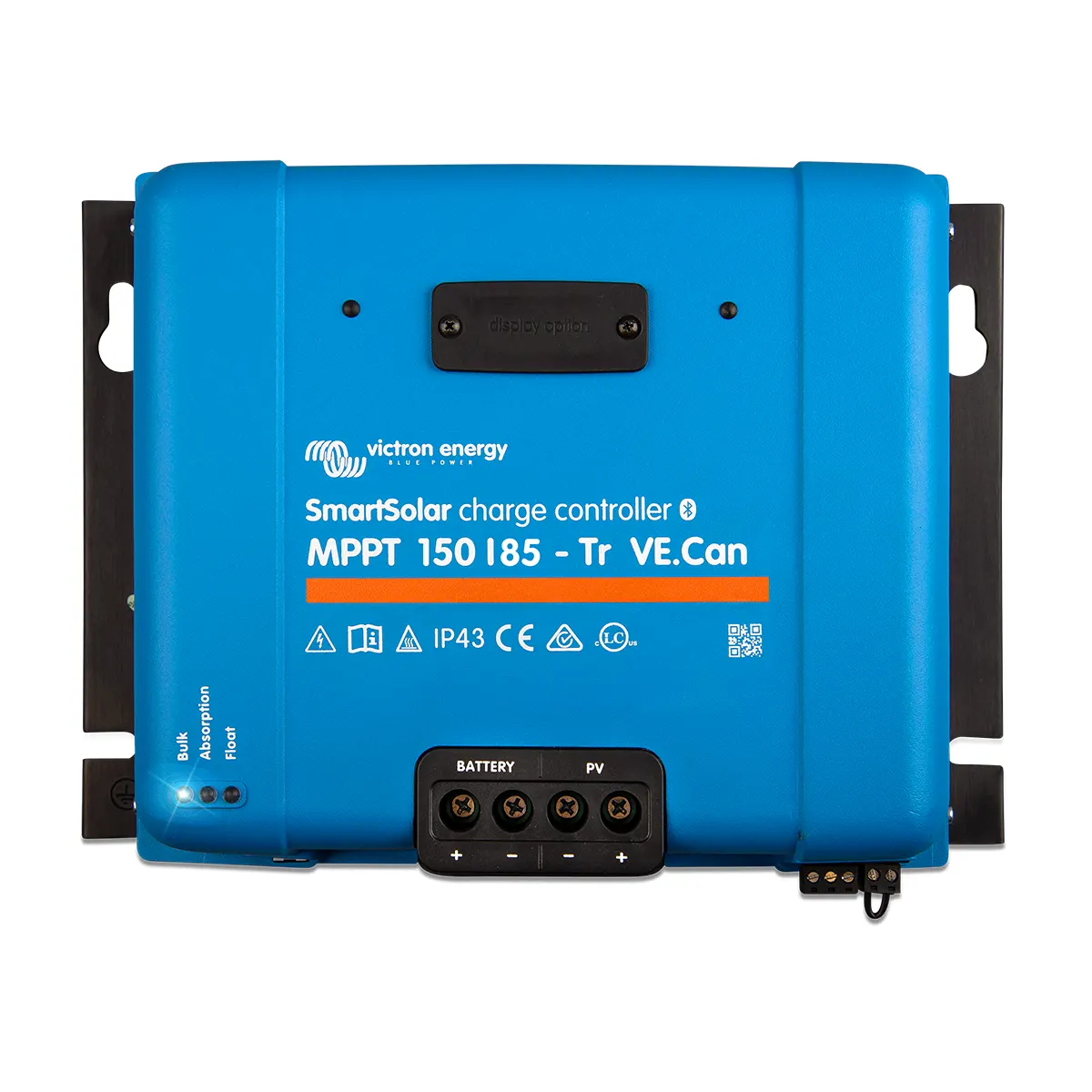

Victron SmartSolar MPPT 150/85-Tr VE.Can

- Battery voltage - 12/24/48 V Auto Select (36 V: manual)
- Rated charge current - 85A
- Nominal PV power, 12 V (See note 1a,b)- 1200W
- Nominal PV power, 24 V (See note 1a,b) - 2400W
- Nominal PV power, 36 V (See note 1a,b) - 3600W
- Nominal PV power, 48 V (See note 1a,b) - 4900W
- Max. PV short circuit current (See note 2) - 70 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage - 150 V absolute maximum coldest conditions, 145 V start-up and operating maximum
- Self-consumption - Less than 35 mA @ 12 V / 20 mA @ 48 V
- Charge voltage 'absorption' - Default setting: 14,4 / 28,8 / 43,2 / 57,6 V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float' - Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'equalization' - Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
- Charge algorithm - multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
- Protection - PV reverse polarity / Output short circuit / Over temperature
- Operating temperature -30 to +60 °C (full rated output up to 40 °C)
- Data communication - VE.Can, VE.Direct and Bluetooth
- Remote on/off - Yes (2 pole connector)
- Programmable relay - DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
- Parallel operation - Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
- PV terminals (See note 3) - 35 mm² / AWG2 (Tr models) Three pairs of MC4 connectors (MC4 models)
- Battery terminals - 35mm² / AWG2
- Weight - 4,5 kg

NOTES:
1a - If more PV power is connected, the controller will limit input power
1b - The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V
2 - A PV array with a higher short circuit current may damage the controller.
3 - MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
