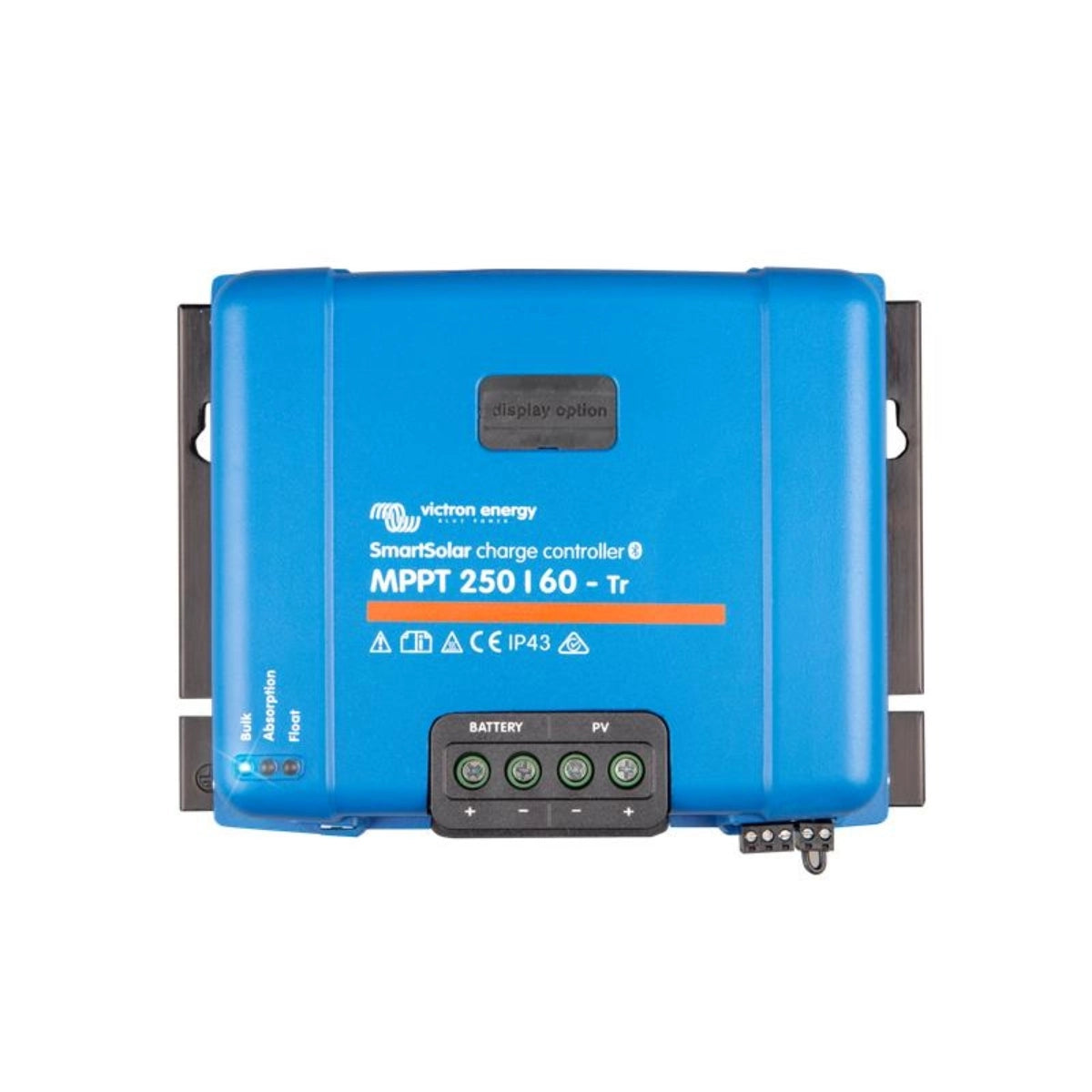

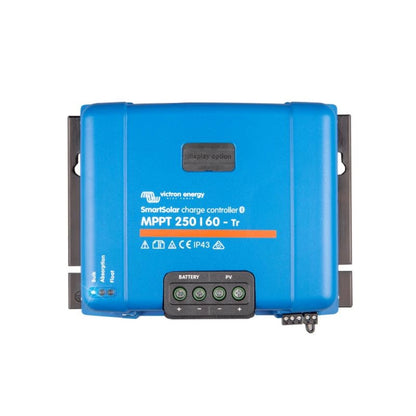

Victron SmartSolar MPPT 250/60-Tr

Victron SmartSolar MPPT 250/60-Tr

R 7,556.00
R 7,858.24 R 7,556.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Victron SmartSolar MPPT 250/60-Tr

Product Features:

  • Bluetooth Smart Built-in: Wireless setup, monitoring, and updates via the VictronConnect app.
  • VE.Direct Port: Enables a wired data connection to GX devices, PCs, or other controllers.
  • Ultra-fast MPPT: Improves energy harvest by up to 30% vs. PWM and 10% vs. slower MPPTs, especially in variable cloud cover.
  • Advanced Partial Shading Detection: Innovative algorithm ensures maximum harvest by locking onto the optimum power point during shading.
  • Flexible Charging: Features 8 pre-programmed algorithms and a fully customizable mode for any battery type.
  • Electronic Protection: Comprehensive safety against over-temperature, PV short circuits, reverse polarity, and reverse current.
  • Smart Sensing: Optional Bluetooth-integrated sensing for battery voltage, temperature, and current (via Smart Battery Sense or BMV).
  • Synchronized Charging: Wirelessly parallel and sync up to 10 units via Bluetooth.
  • Recovery Function: Capable of charging batteries discharged to 0V and reconnecting to disconnected Li-ion batteries.

Victron SmartSolar MPPT 250/60-Tr

PRODUCT SPECIFICATIONS

- Battery voltage: 12/24/48 V Auto Select (software tool needed to select 36V)
- Rated charge current: 60A
- Nominal PV power, 12 V: 860W
- Nominal PV power, 24 V: 1720W
- Nominal PV power, 36 V: 2580W
- Nominal PV power, 48 V: 3440W
- Max. PV short circuit current: 35 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage: 250 V absolute maximum coldest conditions, 245 V start-up and operating maximum
- Self-consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'equalization': Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
- Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
- Protection: PV reverse polarity / Output short circuit / Over temperature
- Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
- Data communication: VE.Direct and Bluetooth
- Remote on/off: Yes (2 pole connector)
- Programmable relay: DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
- Parallel operation: Yes: up to 10 units can be synchronized with Bluetooth
- PV terminals: 35 mm² / AWG2 (Tr models) or Two pairs of MC4 connectors (MC4 models)
- Battery terminals: 35mm² / AWG2
- Weight: 3 kg

NOTES:
1a - If more PV power is connected, the controller will limit input power.
1b - The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2 - A PV array with a higher short circuit current may damage the controller.
3 - MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker).
