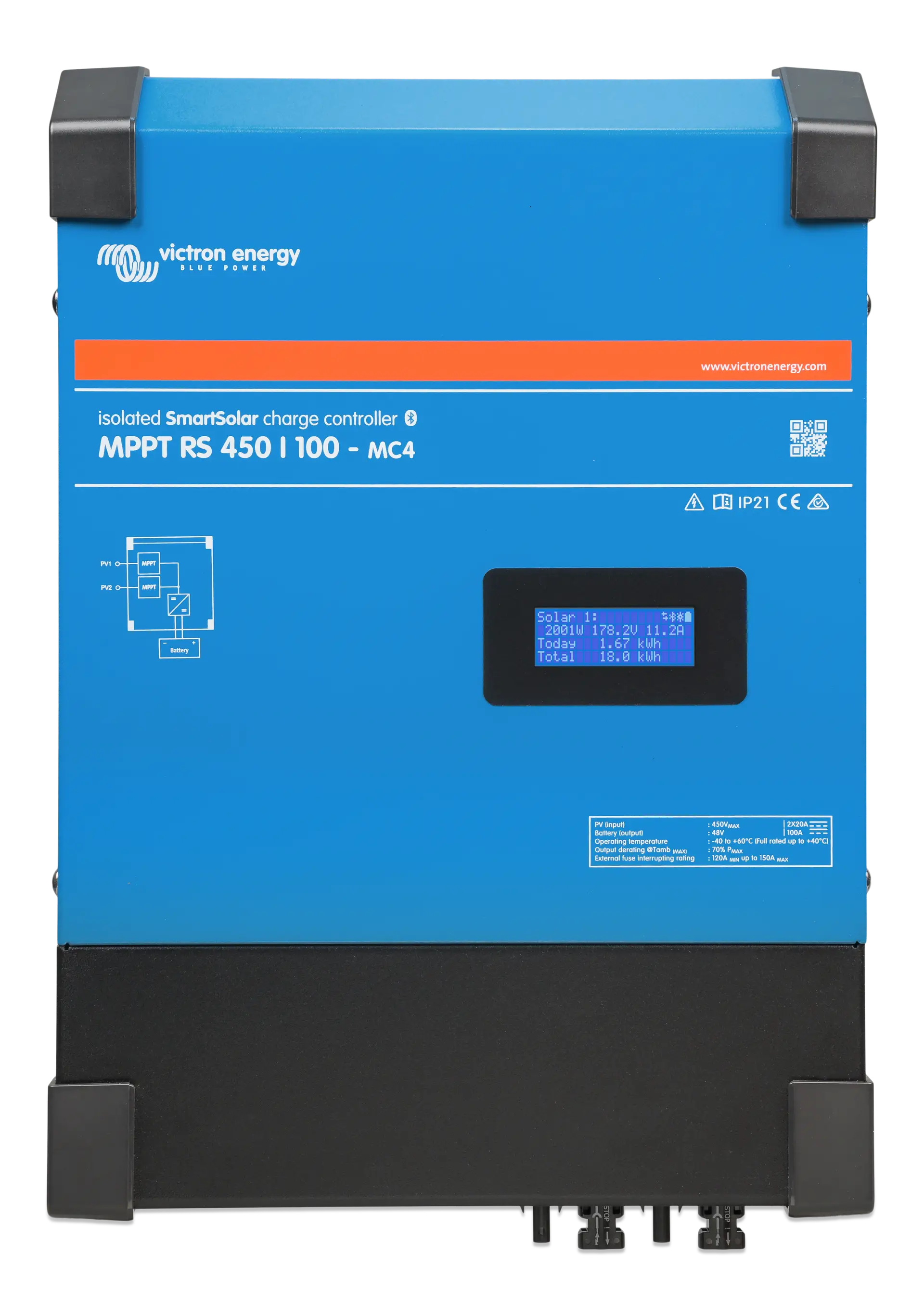

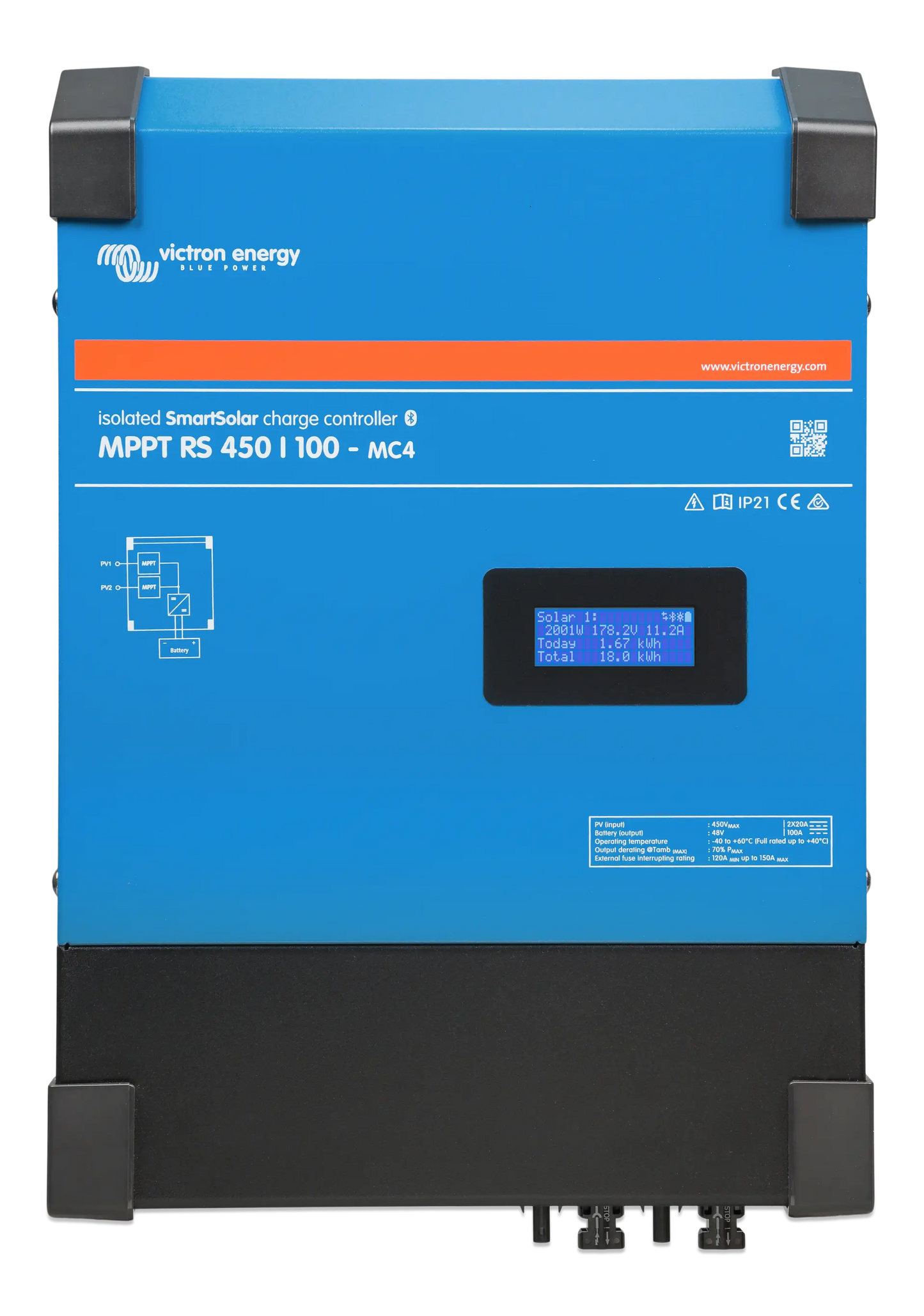

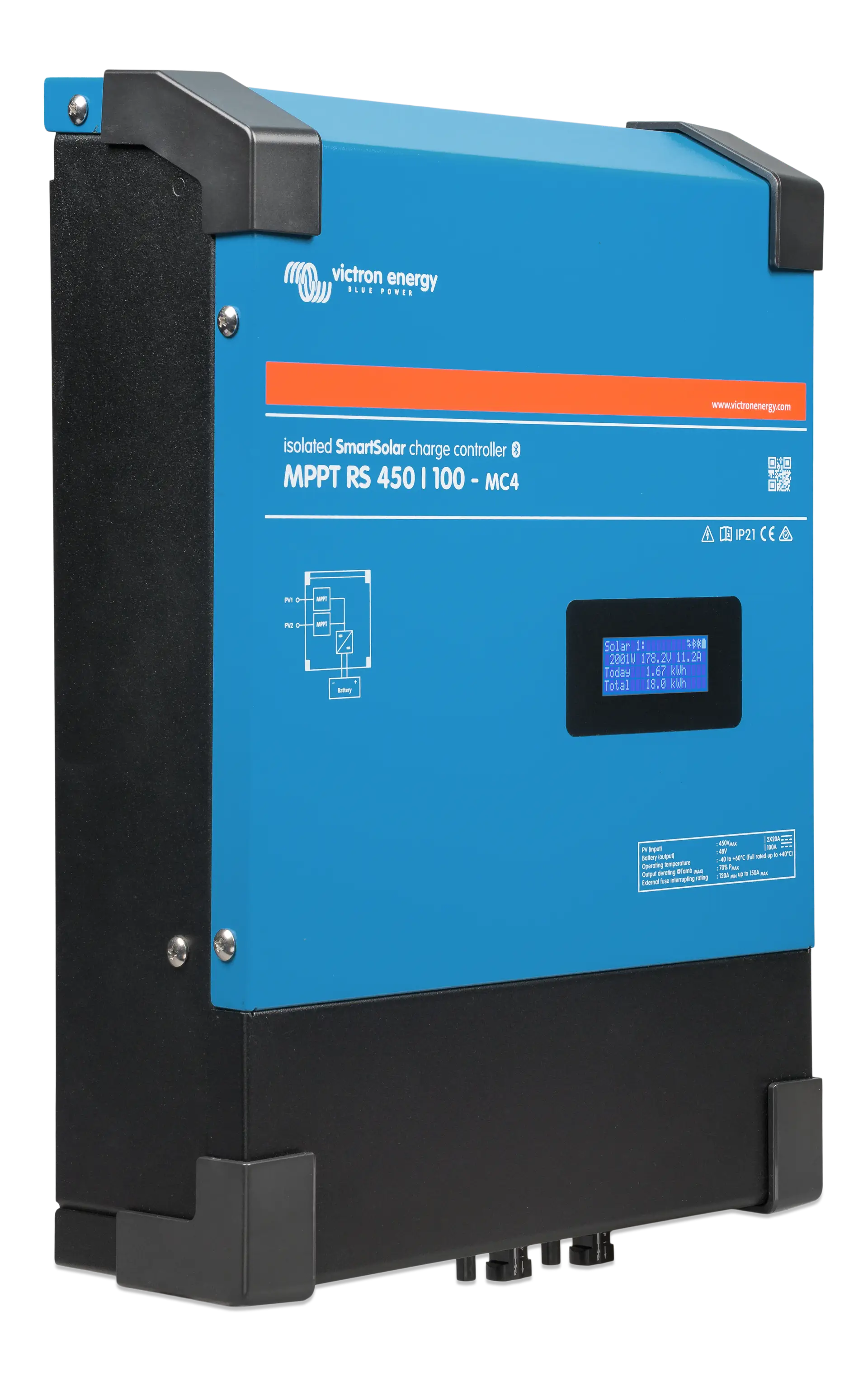

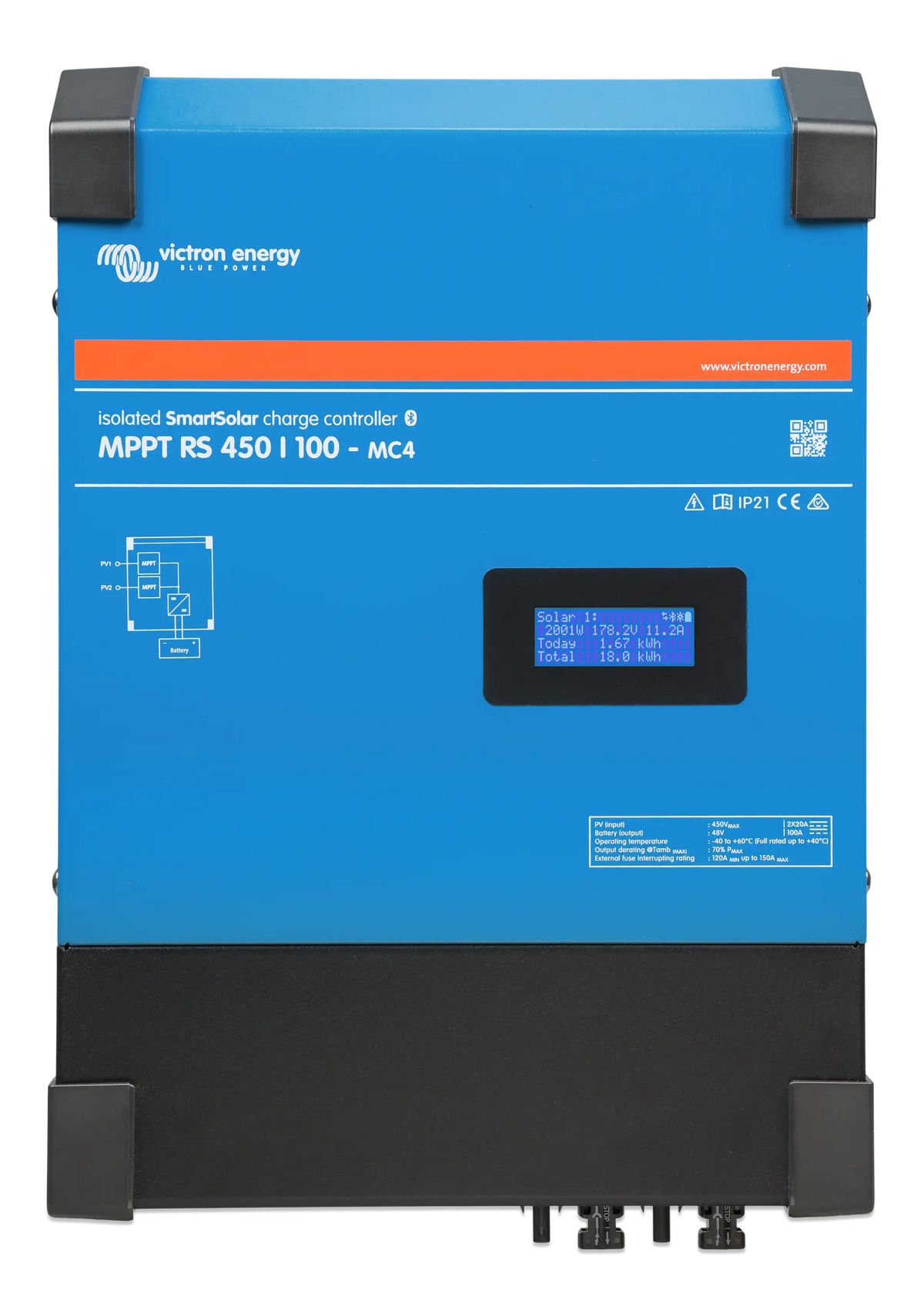

Victron SmartSolar MPPT RS 450/100-MC4

CHARGER

- Battery voltage - 48V
- Rated charge current - 100A
- Maximum charge power - 5.8 kW at 57.6 V
- Charge voltage 'absorption’ - Default setting: 57.6 V (adjustable)
- Charge voltage 'float' - Default setting: 55.2 V (adjustable)
- Programmable voltage range - Minimum: 36 V / Maximum: 60 V (See note 7)
- Charge algorithm - Multi-stage adaptive (adjustable)
- Battery temperature sensor - Included

SOLAR

- Maximum DC PV voltage - 450 V
- Start-up voltage - 120 V
- MPPT operating voltage range - 65 – 450 V (See note 1)
- Number of trackers - 2
- Max. PV operational input current - 16 A per tracker
- Max. PV short circuit current (See note 2) - 20 A per tracker
- Max. DC output charging power - 4000 W per tracker / 5760 W total
- Maximum PV array size per tracker (See note 3) - 7200 Wp (450 V x 20 A)
- PV Isolation fail level (See note 4) - 100 kΩ

Notes:

1) MPPT operating voltage range is constrained by battery voltage - PV VOC should not exceed 8 x battery float voltage. For example, a 52.8 V float voltage results in a maximum PV VOC of 422.4 V.

2) A higher short circuit current may damage the controller if PV array is connected in reverse polarity.

3) Max. 450 VOC result in appr. 360 Vmpp, therefor the maximum PV array is appr. 360 V x 20 A = 7200Wp.

4) The SmartSolar MPPT RS will test for sufficient resistive isolation between PV+ and GND, as well as PV and GND. If the resistance falls below the threshold, the unit will report an error and send an error signal to the GX device (if connected) for audible and email notifications. Despite the error, the product will continue charging the battery.

5) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC

6) The MPPT RS is currently not compatible with VE.Smart Networks.

7) The Charger set-point (float and absorption) can be set to max 60 V. The output voltage at the charger terminals can be higher, due to temperature compensation as well as compensation for voltage drop over the battery cables. The maximum output current is reduced on a linear basis from full current at 60 V to 5A at 62 V. The equalization voltage can be set to max 62 V, the equalization current percentage can be set to max 6%
