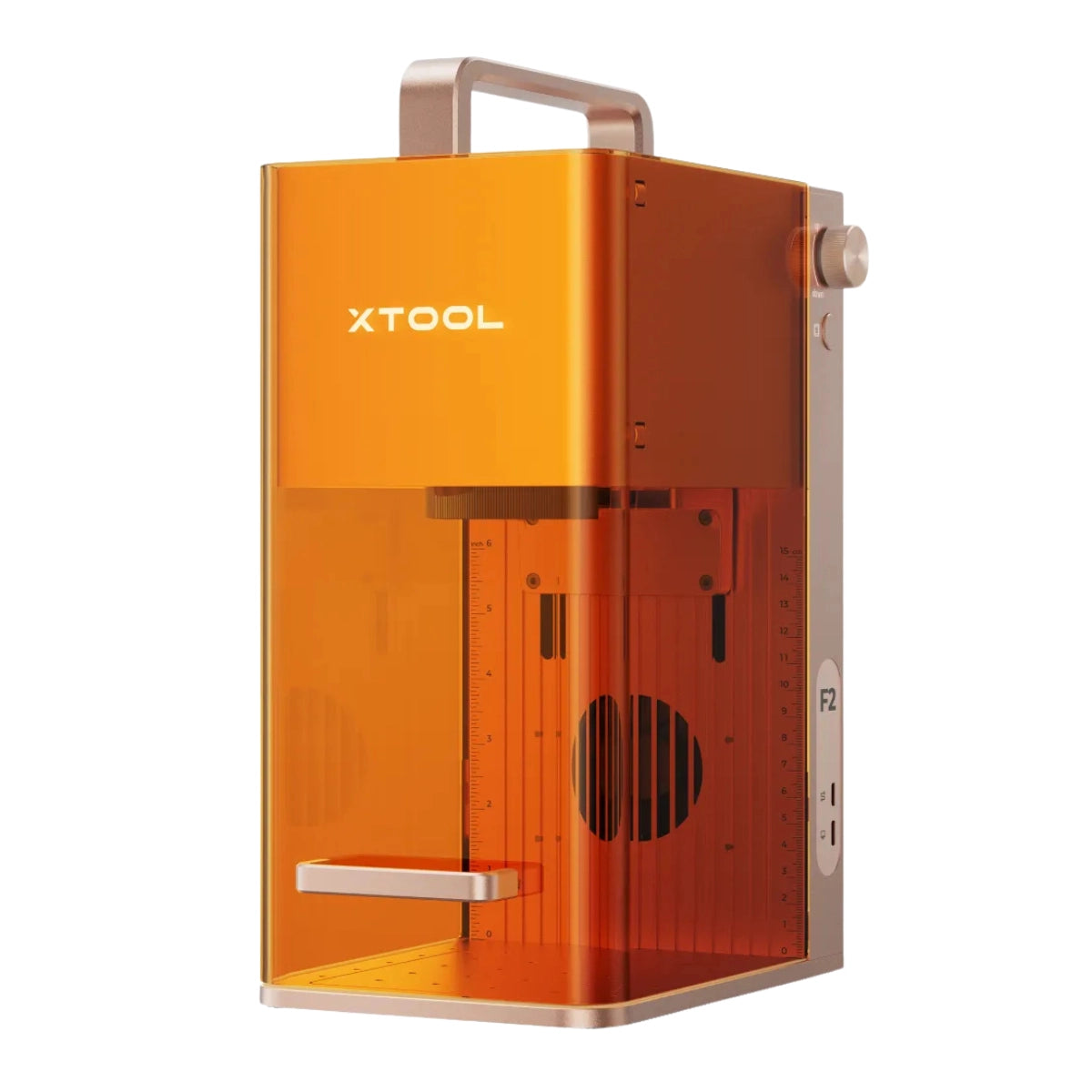

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver

R 9,564.00
R 10,999.00 R 9,564.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver

Take your crafting, personalization business, or on-site retail experience to the next level with the xTool F2. Engineered as a true powerhouse in a compact footprint, this portable dual-laser engraver combines a high-speed 15W blue diode laser with a precise 5W infrared (IR) laser. Whether you're cutting organic materials or marking fine metals, the xTool F2 delivers professional-grade results anywhere you work or sell.

Product Features

  • 5W IR Laser: Perfect for premium metals and plastics, delivering vivid color engraving and deep black results.
  • 15W Diode Laser: Engrave and cut everyday materials like wood, acrylic, and leather with ease.
  • 50MP Smart Camera: Live preview for precise placement and minimized material waste.
  • Fast & Precise: Up to 6,000 mm/s speed for rapid, crisp batches.
  • Portable & Safe: Compact, eye-safe design built for on-site personalization.

PRODUCT SPECIFICATIONS

Processing & Laser Performance
- Laser Type: 15W Diode Laser + 5W 1064nm Infrared Laser
- Processing Modes: Laser Engraving, Laser Cutting
- Max Working Speed: 6,000 mm/s (236.22 ips)
- Standard Working Area: 115 mm × 115 mm (4.53" × 4.53")
- Extended Working Area: 400 mm × 115 mm (15.75" × 4.53") with Extension
- Max Processing Height: 120 mm (4.72")
- Max Rotary Engraving Diameter: 120 mm (4.72")
- Max Cutting Capacity (Basswood): 15 mm (0.59") in multiple passes
- Max Cutting Capacity (Acrylic): 12 mm (0.47") in multiple passes

Precision & Accuracy
- Diode Laser Spot Size: 0.08 mm × 0.06 mm (0.00315" × 0.00236")
- Infrared Laser Spot Size: 0.03 mm × 0.03 mm (0.00118" × 0.00118")
- Motion Accuracy: 0.00199 mm (0.000078")

Material Compatibility
- Diode Laser Cutting: Paper, Wood, Leather, MDF, Felt, Dark Opaque Acrylic
- Diode Laser Engraving: Paper, Wood, Leather, Coated Metal, Dark Opaque Acrylic
- Infrared Laser Engraving: Plastics, Gold, Silver, Platinum, Stainless Steel, and non-coated metals

Operation & Vision System
- Built-in Camera: 50 MP Smart Camera
- Focus Modes: Auto Focus & Manual Focus (Two-dot alignment)
- Positioning Methods: Framing Positioning, Camera Positioning
- Framing Modes: Rectangle Framing, Outline Framing, Polygon Framing
- Preview Methods: Smart Camera Preview, High-Speed Light Live Preview
- Assembly: 100% Pre-assembled

Software & Connectivity
- Supported Software: xTool Studio
- Operating Systems: Windows / macOS
- Connection Methods: Wi-Fi / USB / IP
- Supported File Formats: SVG, DXF, JPG, JPEG, PNG, BMP
- Almake Compatibility: Supported

Physical & Electrical
- Product Dimensions: 175 mm × 237 mm × 334 mm (6.89" × 9.33" × 13.15")
- Product Weight: 4.60 kg (10.14 lbs)
- Max Machine Input Power: 25V 6.0A (150W)
- Power Adapter Input Voltage: 100 V - 120 V AC, 50/60 Hz
- Safety Certification: Class 4 Laser Safety
