YC Diesel

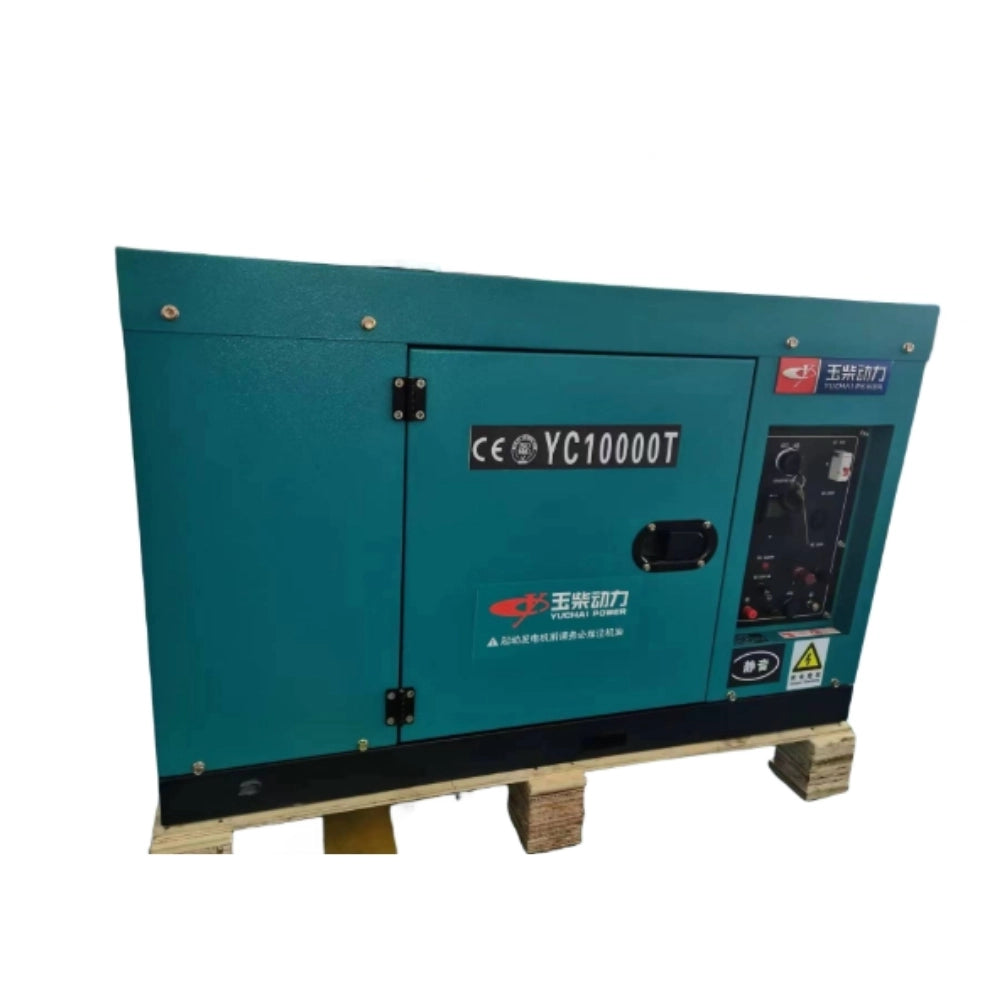

YC10000T 10 KVA Diesel Generator
YC10000T 10 KVA Diesel Generator
Couldn't load pickup availability
YC10000T 10 KVA Diesel Generator
The YC10000T 10KVA silent diesel generator is a high-performance, single-phase power solution designed for efficiency, ease of use, and quiet operation. Running at 3000 RPM and delivering a consistent 220V output, it features a single-cylinder, naturally aspirated engine supported by a Constant Voltage AVR for stable electrical performance. Starting is effortless with the integrated 12V electric starter, and the Yuchai digital control panel provides user-friendly monitoring and control.
Housed in a sound-reducing enclosure that limits noise to around 75dBA, this generator is ideal for residential or commercial use where low noise is essential. Its 14.5-liter fuel tank offers up to 7.5 hours of operation at 75% load, ensuring dependable backup power. Additional features include a low oil pressure warning system for engine protection and a rugged build for reliable, long-term performance.
Product Features:
- Prime 10KVA, 220V, 3000RPM
- Constant Voltage AVR (Automatic Voltage Regulator)
- 12 Volt Electric Starter
- 14.5Litre Fuel Tank, 7.5 Hours @75% Load
- Silent Version (+/-75dBA)
- Single Cylinder In line, Naturally aspirated
- Single phase Output
- Yuchai Digital Control Panel
- Electric start
- Warning for low oil pressure
Specifications:
-
General Data:
- Model: YC10000T
- Prime Power (P.R.P): 10KVA
- Stand-by Power (L.T.P.): 10.8KVA
- Amps: 36.4A
- Power Factor/COS: 1
- Frequency: 50Hz
- Voltage: 220V
- Phases: Single
- Engine Speed: 3000rpm
- Length: 1025mm
- Width: 570mm
- Height: 740mm
- Weight: 200KG
- Tank Capacity: 14.5L
-
Engine Data:
- Brand: Yuchai
- Model: YC1100FE
- Type: Single, air cooled
- Displacement: 667ml
- Air intake: Naturally aspirated
- Voltage: 12V
- Compression Ratio: 20:1
- Prime Power: 10.2kw/3000rpm
- Standard Power: 11.22kw/3000rpm
- Fuel System: Mechanical pump
- Governor: Manual
- Oil capacity: 2L
- Oil Type: SAE10W-30 or SAE15W-40(CD above)
- Diesel Type: 0#(S) -10#(W) - 35#( F)
-
Control Panel:
- Brand: Yuchai
-
Alternator:
- Brand: Xingnuo
- Model: XN-9
- P.R.P: 10KVA
- L.T.P: 10.8KVA
- Connection: Propshaft
- Phases: 1
- IP Protection: 21
-
Additional:
- Running Time: 7.5 Hours@75% Load
- Structure Type: Silent
- Noise Level (7M): 75db
- Auto Voltage Regulator: Constant voltage AVR
- Exhaust temperature: 480℃ - 550℃
- Fuel con. @ 110% Load: 2.58L/h
- Fuel con. @ 100% Load: 2.3L/h
- Fuel Con. @ 75% Load: 1.93L/h
- Fuel Con. @50% Load: 1.43L/h
* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)
NOTE: Due to the dimensions and weight of this product, extra shipping charges will be applicable. We will contact you to verify the delivery costs once your order is received. Alternatively, feel free to contact us for confirmation of shipping costs before placing an order.
