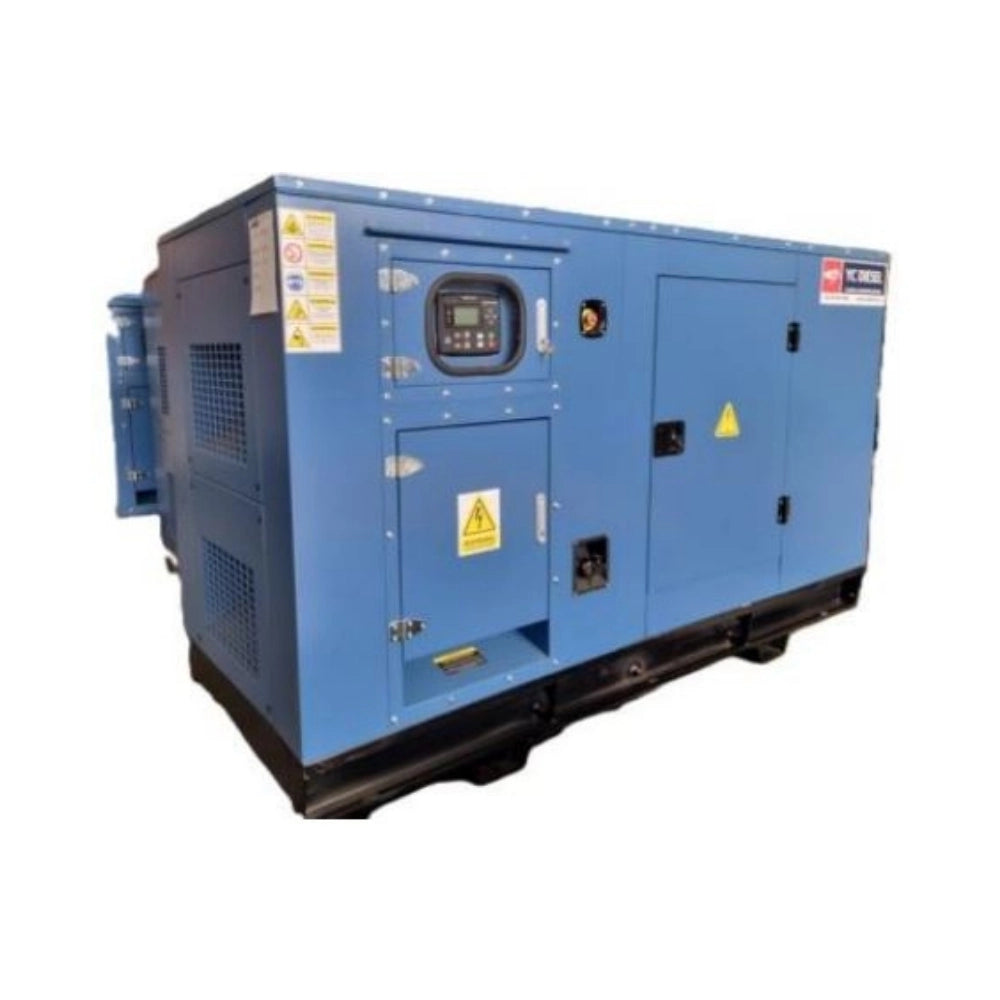

YC4D90.60 60 KVA Diesel Generator

YC4D90.60 60 KVA Diesel Generator

The 60 KVA Diesel Generator delivers reliable, heavy-duty power with a constant voltage AVR, 12V electric start, and turbocharged 4-cylinder engine. Designed for sustained performance, it features a silent enclosure (+/- 70dBA), Smartgen 6100N digital control, built-in ATS, and automatic warning and cut-off for low oil, fuel, or coolant. With a large 160-litre tank, it provides up to 13 hours of operation at 75% load — perfect for extended backup power.

Product Features:

• Prime 62.5 KVA, 400V, 1500RPM

• Constant Voltage AVR (Automatic Voltage Regulator)

• 12Volt Electric Starter

• 160 Litre Fuel Tank, 13 Hours @75% Load

• Silent Version (+/-70dBA)

• Four Cylinder In line, Turbo charged

• Three phase Output

• Smartgen 6100N Digital Control Panel
• Built in ATS

• Warning/cut off system for low oil pressure, fuel and coolant

Specifications:

• General Data:
  • Model: YC4D90.60
  • Prime Power (P.R.P): 62.5KVA
  • Stand-by Power (L.T.P.): 68.8KVA
  • Amps: 90A
  • Power Factor/COS: 0.8
  • Frequency: 50Hz
  • Voltage: 400V
  • Phases: Three
  • Engine Speed: 1500rpm
  • Length: 2610mm
  • Width: 1050mm
  • Height: 1590mm
  • Weight: 1300KG
  • Tank Capacity: 160L
• Engine Data:
  • Brand: Yuchai
  • Model:YC4D90Z-D21
  • Type: 4 cylinder in line
  • Displacement: 4.21L
  • Air intake: Turbo charged
  • Voltage: 12V
  • Compression Ratio: 17.5:1
  • Prime Power: 60kw/1500rpm
  • Standard Power: 66kw/1500rpm
  • Fuel System: Mechanical pump
  • Governor: Electrical
  • Oil capacity: 13L
• Control Panel:
  • Brand: Yuchai
• Alternator:
  • Brand: 1stAll
  • Model: QYI224FS
  • P.R.P: 67.5KVA
  • L.T.P: 74.3KVA
  • Connection: Stare serial
  • Phases: 3
  • IP Protection: 22
• Additional:
  • Running Time: 13 Hours@75% Load
  • Structure Type: Silent
  • Noise Level (7M): 70db
  • Auto Voltage Regulator: Constant voltage AVR
  • Exhaust temperature: ≤550℃
  • Fuel con. @ 110% Load: 18.2L/h
  • Fuel con. @ 100% Load: 16.3L/h
  • Fuel Con. @ 75% Load: 12.4L/h
  • Fuel Con. @50% Load: 8.3L/h

* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)

NOTE: Due to the dimensions and weight of this product, extra shipping charges will be applicable. We will contact you to verify the delivery costs once your order is received. Alternatively, feel free to contact us for confirmation of shipping costs before placing an order.
