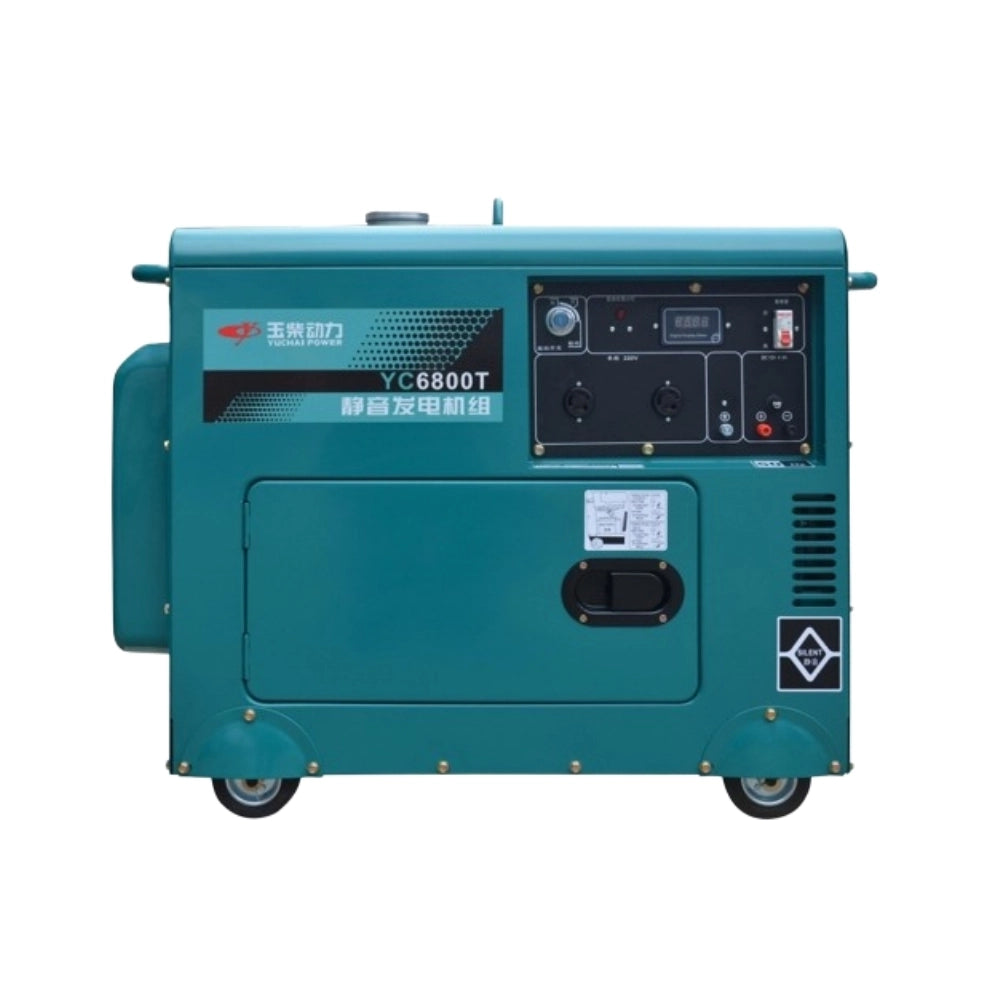

YC6800T 5.6 KVA Diesel Generator

YC6800T 5.6 KVA Diesel Generator

The YC6800T is a robust 5.6 KVA diesel generator designed for dependable power delivery in residential, commercial, or light industrial applications. Operating at 220V and 3000 RPM, it features a single-cylinder, naturally aspirated engine paired with a constant voltage AVR system for stable performance. The unit includes a 12V electric starter, digital control panel, and a 14.5-liter fuel tank that provides up to 10.5 hours of runtime at 75% load. With a silent enclosure reducing noise to around 75dB, it's suitable for use in environments where noise control is a priority.

The generator offers both prime and standby power capabilities, rated at 5.6 KVA and 6.25 KVA respectively, with a fuel-efficient consumption rate as low as 0.98L/h at 50% load. The YC6800T is equipped with safety features such as low oil pressure warnings and is designed for easy operation and maintenance. With its compact footprint and sturdy build, it delivers reliable single-phase power with 20.5A output, making it an ideal backup power solution for a variety of needs.

Product Features:

• Prime 5.6 KVA, 220V, 3000RPM

• Constant Voltage AVR (Automatic Voltage Regulator)
• 12 Volt Electric Starter
• 14.5 Litre Fuel Tank, 10.5 Hours @75% Load
• Silent Version (+/-75dBA)
• Single Cylinder In line, naturally aspirated
• Single phase Output
• YC Diesel Digital Control Panel
• Electric start
• Warning for low oil pressure

Specifications:

• General Data:
  • Model: YC6800T
  • Prime Power (P.R.P): 5.6KVA
  • Stand-by Power (L.T.P.): 6.25KVA
  • Amps: 20.5A
  • Power Factor/COS: 1
  • Frequency: 50Hz
  • Voltage: 220V
  • Phases: Single
  • Engine Speed: 3000rpm
  • Length: 950mm
  • Width: 510mm
  • Height: 640mm
  • Weight: 165KG
  • Tank Capacity: 14.5L
• Engine Data:
  • Brand: Yuchai
  • Model: YC186FA
  • Type: Single cylinder
  • Displacement: 418ml
  • Air intake: Naturally aspirated
  • Voltage: 12V
  • Compression Ratio: 20:1
  • Prime Power: 5.9kw/3000rpm
  • Standard Power: 6.5kw/3600rpm
  • Fuel System: Mechanical pump
  • Governor: Manual
  • Oil capacity: 2.3L
  • Oil Type: SAE 10W-30 or SAE 15W-40（CD above）
  • Diesel Type: 0#(S) -10#（W） - 35#（ F）
• Control Panel:
  • Brand: Yuchai
• Alternator:
  • Brand: Xingnuo
  • Model: XN-5
  • P.R.P: 5.6KVA
  • L.T.P: 6.25KVA
  • Connection: Propshaft
  • Phases: 1
  • IP Protection: 21
• Additional:
  • Running Time: 10.5 Hours@75% Load
  • Structure Type: Silent
  • Noise Level (7M): 75db
  • Auto Voltage Regulator: Constant voltage AVR
  • Exhaust temperature: 480℃ - 550℃
  • Fuel con. @ 110% Load: 1.84L/h
  • Fuel con. @ 100% Load: 1.64L/h
  • Fuel Con. @ 75% Load: 1.37L/h
  • Fuel Con. @50% Load: 0.98L/h

* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)

NOTE: Due to the dimensions and weight of this product, extra shipping charges will be applicable. We will contact you to verify the delivery costs once your order is received. Alternatively, feel free to contact us for confirmation of shipping costs before placing an order.
