YC6A245.200 200 KVA Diesel Generator

YC6A245.200 200 KVA Diesel Generator

R 307,248.00
R 307,248.00
Sale Sold out
Tax included. Shipping calculated at checkout.

YC6A245.200 200 KVA Diesel Generator

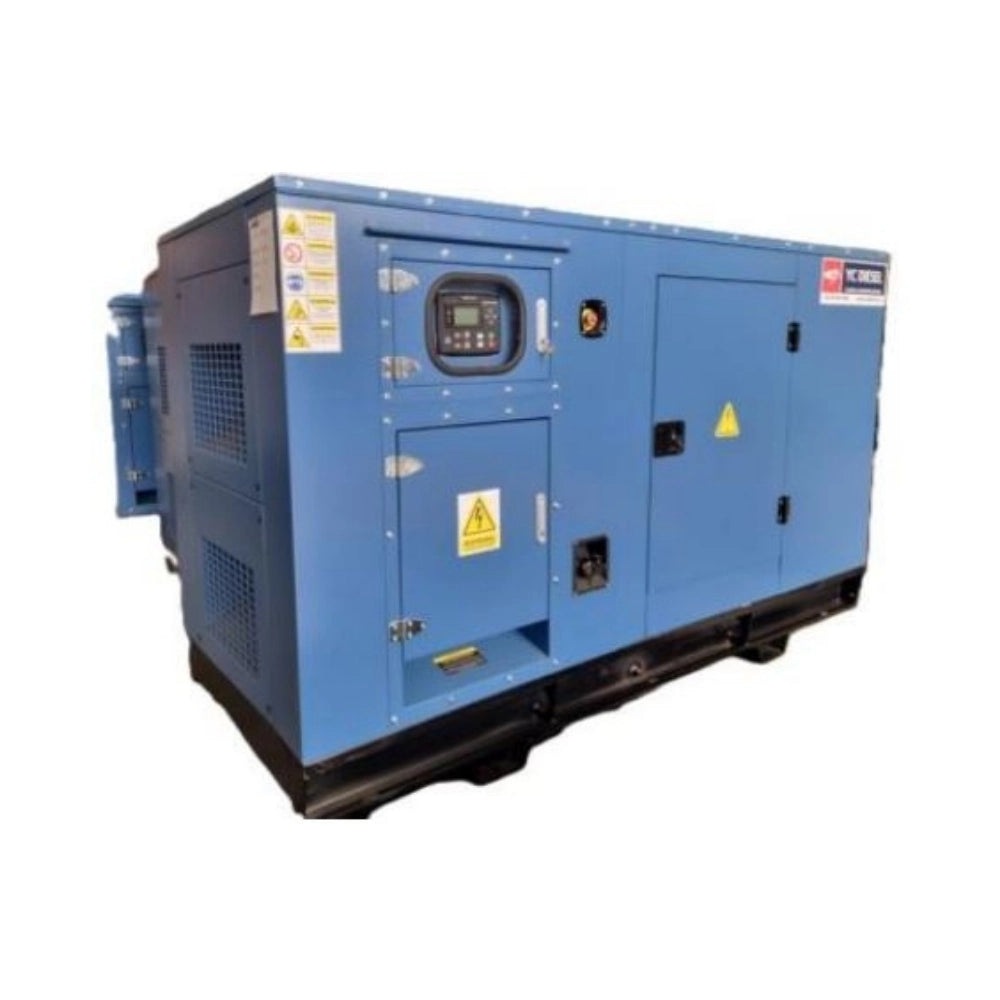

The 200 KVA Diesel Generator delivers powerful, reliable backup power with a constant voltage AVR, 24V electric start, and turbocharged 4-cylinder engine. Designed for heavy-duty applications, it features a silent enclosure (+/- 70dBA), Smartgen HGM7120N digital control, built-in ATS, and automatic warning and cut-off for low oil, fuel, or coolant. With a large 320-litre tank, it provides up to 9.5 hours of operation at 75% load — perfect for sustained power when you need it most.

Product Features:

  • Prime 188 KVA, 400V, 1500RPM
  • Constant Voltage AVR (Automatic Voltage Regulator)
  • 24Volt Electric Starter
  • 320 Litre Fuel Tank, 9.5 Hours @75% Load
  • Silent Version (+/-70dBA)
  • Six Cylinder In line, Turbo charged
  • Three phase Output
  • Smartgen HGM7120N Digital Control Panel
  • Built in ATS
  • Warning/cut off system for low oil pressure, fuel and coolant

* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)

NOTE: Due to the dimensions and weight of this product, extra shipping charges will be applicable. We will contact you to verify the delivery costs once your order is received. Alternatively, feel free to contact us for confirmation of shipping costs before placing an order.

PRODUCT SPECIFICATIONS

General Data:
- Model: YC6A245.200
- Prime Power (P.R.P): 188KVA
- Stand-by Power (L.T.P.): 200KVA
- Amps: 297A
- Power Factor/COS: 0.8
- Frequency: 50Hz
- Voltage: 400V
- Phases: Three
- Engine Speed: 1500rpm
- Length: 3500mm
- Width: 1200mm
- Height: 1750mm
- Weight: 2300KG
- Tank Capacity: 320L

Engine Data:
- Brand: Yuchai
- Model: YC6B205L-D21
- Type: 6 cylinder in line
- Displacement: 7.26L
- Air intake: Turbo & intercooled
- Voltage: 24V
- Compression Ratio: 17.5:1
- Prime Power: 165kw/1500rpm
- Standard Power: 181kw/1500rpm
- Fuel System: Mechanical pump
- Governor: Electrical
- Oil capacity: 24L

Control Panel:
- Brand: Smartgen

Alternator:
- Brand: 1stAll
- Model: QYI-274 FS
- P.R.P: 150KVA
- L.T.P: 165KVA
- Connection: Stare serial
- Phases: 3
- IP Protection: 22

Additional:
- Running Time: 9.5 Hours@75% Load
- Structure Type: Silent
- Noise Level (7M): 70db
- Auto Voltage Regulator: Constant voltage AVR
- Exhaust temperature: ≤455℃
- Fuel con. @ 110% Load: 44.7L/h
- Fuel con. @ 100% Load: 40.1L/h
- Fuel Con. @ 75% Load: 29.5L/h
- Fuel Con. @50% Load: 20.1L/h

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
