YC9800T 8.8 KVA Diesel Generator

YC9800T 8.8 KVA Diesel Generator

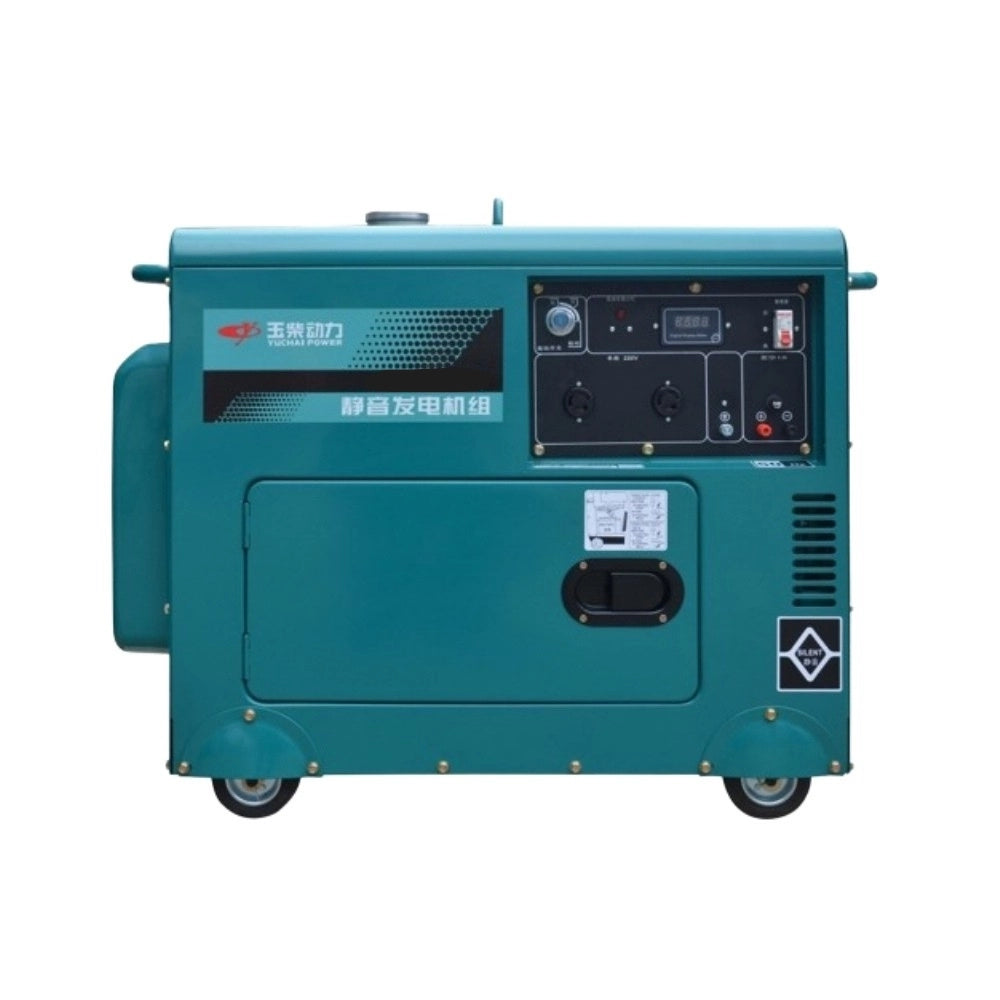

The YC9800T 8.8 KVA silent diesel generator is a compact and efficient power solution designed for low-noise performance and reliability. Operating at 3000 RPM with single-phase output at 220V, it features a single-cylinder, naturally aspirated engine and delivers consistent power through a Constant Voltage AVR system. The unit is equipped with a 12V electric starter for easy operation and includes a YC Diesel digital control panel for real-time monitoring.

With a 14.5-liter fuel tank, the generator provides up to 8 hours of runtime at 75% load, making it ideal for backup power in homes, small businesses, or remote applications. The silent enclosure keeps noise levels around 75dBA, while built-in safety features such as a low oil pressure warning help protect the engine. The trusted Xingnuo XN-7.5 alternator ensures stable power output, combining durability with dependable performance.

Product Features:

• Prime 8.8 KVA, 220V/380V, 3000RPM

• Constant Voltage AVR (Automatic Voltage Regulator)
• 12 Volt Electric Starter
• 14.5Litre Fuel Tank, 8 Hours @75% Load
• Silent Version (+/-75dBA)
• Single Cylinder In line, Naturally aspirated
• Single phase Output
• YC Diesel Digital Control Panel
• Xingnuo XN-7.5 alternator
• Warning for low oil pressure

Specifications:

• General Data:
  • Model: YC9800XE-3D
  • Prime Power (P.R.P): 8.8KVA
  • Stand-by Power (L.T.P.): 9.3KVA
  • Amps: 31.8A
  • Power Factor/COS: 1
  • Frequency: 50Hz
  • Voltage: 220V
  • Phases: Single/Three
  • Engine Speed: 3000rpm
  • Length: 950mm
  • Width: 510mm
  • Height: 640mm
  • Weight: 170KG
  • Tank Capacity: 14.5L
• Engine Data:
  • Brand: Yuchai
  • Model: YC195FA
  • Type: Single cylinder
  • Displacement: 532ml
  • Air intake: Naturally aspirated
  • Voltage: 12V
  • Compression Ratio: 20:1
  • Prime Power: 8.8kw/3000rpm
  • Standard Power: 9.2kw/3600rpm
  • Fuel System: Mechanical pump
  • Governor: Manual
  • Oil capacity: 1.6L
  • Oil Type: SAE 10W-30 or SAE 15W-40（CD above）
  • Diesel Type: 0#(S) -10#（W） - 35#（ F））
• Control Panel:
  • Brand: Yuchai
• Alternator:
  • Brand: Xingnuo
  • Model: XN-7.5
  • P.R.P: 8.8KVA
  • L.T.P: 9.3KVA
  • Connection: Propshaft
  • Phases: 1
  • IP Protection: 21
• Additional:
  • Running Time: 8 Hours@75% Load
  • Structure Type: Silent
  • Noise Level (7M): 75db
  • Auto Voltage Regulator: Constant voltage AVR
  • Exhaust temperature: 480℃ - 550℃
  • Fuel con. @ 110% Load: 2.38L/h
  • Fuel con. @ 100% Load: 2.13L/h
  • Fuel Con. @ 75% Load: 1.79L/h
  • Fuel Con. @50% Load: 1.32L/h

* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)
