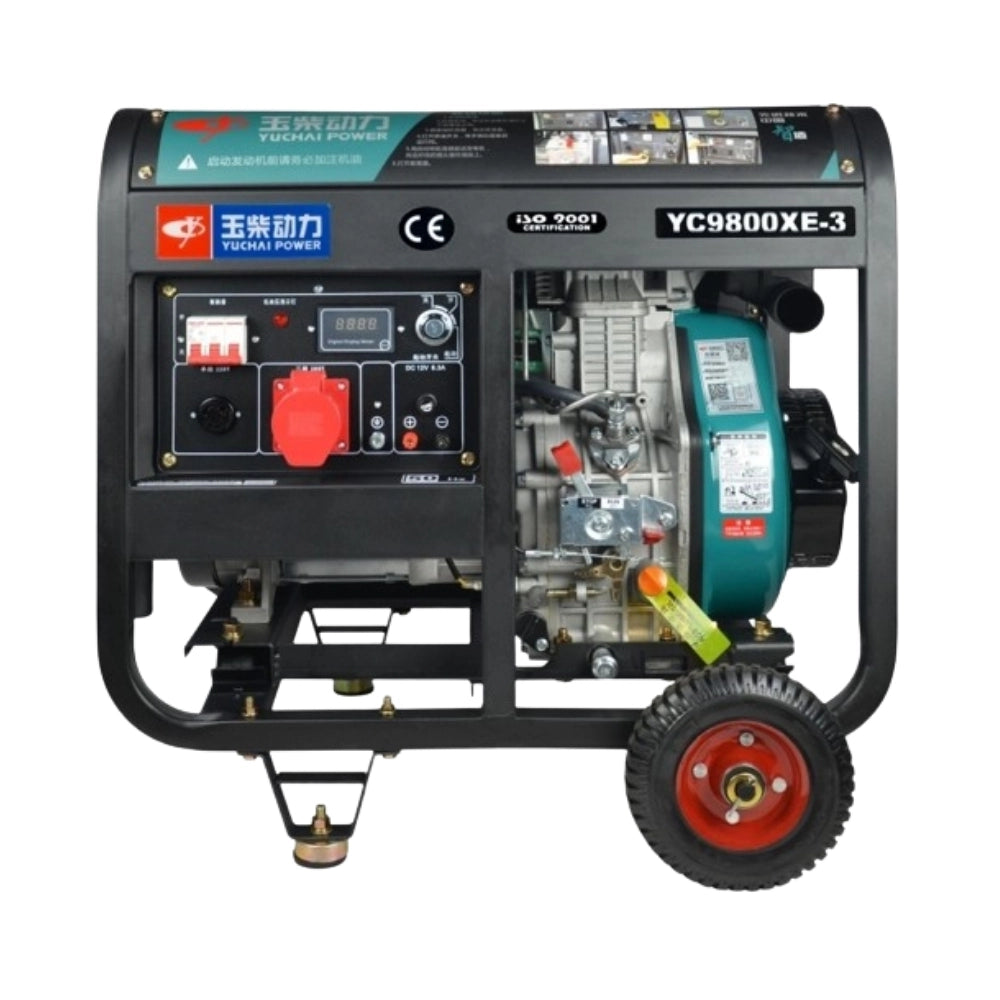

YC9800XE-3D 7KVA/8.8 KVA Diesel Generator

YC9800XE-3D 7KVA/8.8 KVA Diesel Generator

The YC6800T 7KVA/8.8KVA diesel generator is a powerful and versatile power solution, offering both single-phase and three-phase output at 220V or 380V, running at 3000 RPM. Built for reliability and performance, it features a two-cylinder, naturally aspirated engine with a 12V electric starter and a constant voltage AVR to ensure stable power delivery. The unit is equipped with a YC Diesel digital control panel for user-friendly monitoring and management, and includes a low oil pressure warning system for added engine protection.

With a robust Xingnuo XN-7.5 alternator and a 14.5-liter fuel tank, this open-deck generator can operate for up to 8 hours at 75% load. Though it has an approximate noise level of 85dBA, the open-frame design offers easy access for maintenance and cooling. Ideal for both residential backup and light industrial use, this generator provides dependable performance in demanding environments.

Product Features:

• Prime 7KVA/8.8 KVA, 220V/380V, 3000RPM

• Constant Voltage AVR (Automatic Voltage Regulator)
• 12 Volt Electric Starter
• 14.5Litre Fuel Tank, 8 Hours @75% Load
• Open deck (+/-85dBA)
• Two Cylinder In line, Naturally aspirated
• Single phase/Three phases Output
• YC Diesel Digital Control Panel
• Xingnuo XN-7.5 alternator
• Warning for low oil pressure

Specifications:

• General Data:
  • Model: YC9800XE-3D
  • Prime Power (P.R.P): 7KVA/8.8KVA
  • Stand-by Power (L.T.P.): 7.44KVA/9.3KVA
  • Amps: 31.8A/13.3A
  • Power Factor/COS: 1/0.8
  • Frequency: 50Hz
  • Voltage: 220V/380V
  • Phases: Single/Three
  • Engine Speed: 3000rpm
  • Length: 730mm
  • Width: 495mm
  • Height: 620mm
  • Weight: 131KG
  • Tank Capacity: 14.5L
• Engine Data:
  • Brand: Yuchai
  • Model: YC195F
  • Type: Single cylinder
  • Displacement: 532ml
  • Air intake: Naturally aspirated
  • Voltage: 12V
  • Compression Ratio: 20:1
  • Prime Power: 8.8kw/3000rpm
  • Standard Power: 9.2kw/3600rpm
  • Fuel System: Mechanical pump
  • Governor: Manual
  • Oil capacity: 1.6L
  • Oil Type: SAE 10W-30 or SAE 15W-40（CD above）
  • Diesel Type: 0#(S) -10#（W） - 35#（ F））
• Control Panel:
  • Brand: Yuchai
• Alternator:
  • Brand: Xingnuo
  • Model: XN-7.5
  • P.R.P: 8.8KVA
  • L.T.P: 9.3KVA
  • Connection: Propshaft
  • Phases: 1
  • IP Protection: 21
• Additional:
  • Running Time: 8 Hours@75% Load
  • Structure Type: Open deck
  • Noise Level (7M): 85db
  • Auto Voltage Regulator: Constant voltage AVR
  • Exhaust temperature: 480℃ - 550℃
  • Fuel con. @ 110% Load: 2.38L/h
  • Fuel con. @ 100% Load: 2.13L/h
  • Fuel Con. @ 75% Load: 1.79L/h
  • Fuel Con. @50% Load: 1.32L/h

* Please contact us to verify current stock availability.
* All specifications are subjected to change without prior notice
* All rating is at Sea level, 25 degree, Ambient Temperature.
* Images provided are for illustrative purposes and may not precisely represent the actual product.
* All YC Diesel engines carry manufacturer warranty of 2 years or 2000 hours, whichever comes first
* All household and small business use generators carry a 6 month or 500 hour warranty
* Delivery will be arranged and charged separately
* Prices include ATS (Automatic transfer switch)

NOTE: Due to the dimensions and weight of this product, extra shipping charges will be applicable. We will contact you to verify the delivery costs once your order is received. Alternatively, feel free to contact us for confirmation of shipping costs before placing an order.
